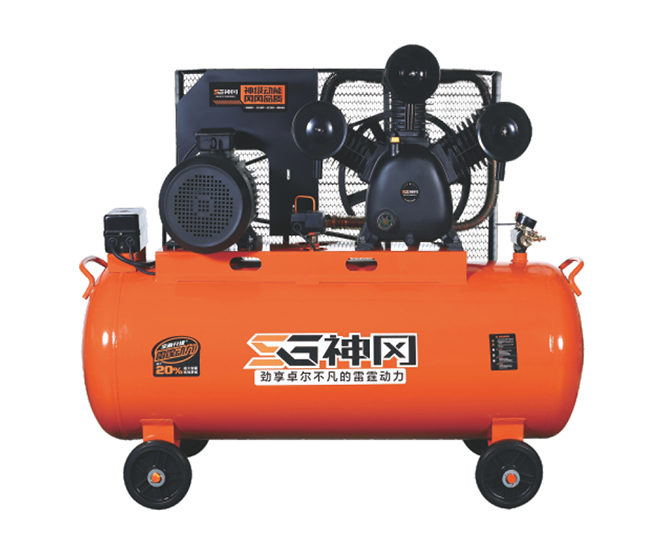

Belt type air compressor
SG-W1.2/8
Automotive maintenance/spraying/factory preferred
The machine has high wear-resistant cylindars, longer valve group life, increased main engine wheel counterweight,stable operation. better heat dissipation, using national standard 7.5kw-4 motor, strong power, stable operation, Baosteel natlonal standard steel plate, increased gas storage The tank design guarantees safety.
| Model | Power | Cylinder diameter * number of cylinders | Speed | Traffic | Voltage | Volume | Exhaust pressure | Weight | Overall dimensions | ||||
| Model | Kw | Hp | φ mm*s | r/min | L/min | cfm | V | L | Gal | Bar | Psi | Kg | L*W*H cm |
| SG-V1.05/8 | 7.5 | 10 | 105x2/55x1 | 860 | 1050 | 37.5 | 380 | 300 | 79.3 | 12.5 | 181 | 304 | 157x62x122 |
| SG-V1.05/12.5 | 7.5 | 10 | 105x2/55x1 | 860 | 1050 | 37.5 | 380 | 300 | 79.3 | 12.5 | 181 | 304 | 157x62x122 |
| SG-W1.2/8 | 7.5 | 10 | 90x3 | 820 | 1200 | 42.9 | 380 | 300 | 79.3 | 8 | 116 | 247 | 152x62x116 |
| SG-W1.6/8 | 15 | 15 | 100x3 | 820 | 1600 | 57.2 | 380 | 320 | 84.5 | 8 | 116 | 345 | 165x66x125 |
| SG-W2.0/8 | 20 | 20 | 120x3 | 720 | 2000 | 72.5 | 380 | 320 | 84.5 | 8 | 116 | 385 | 170x66x135 |
