roducts

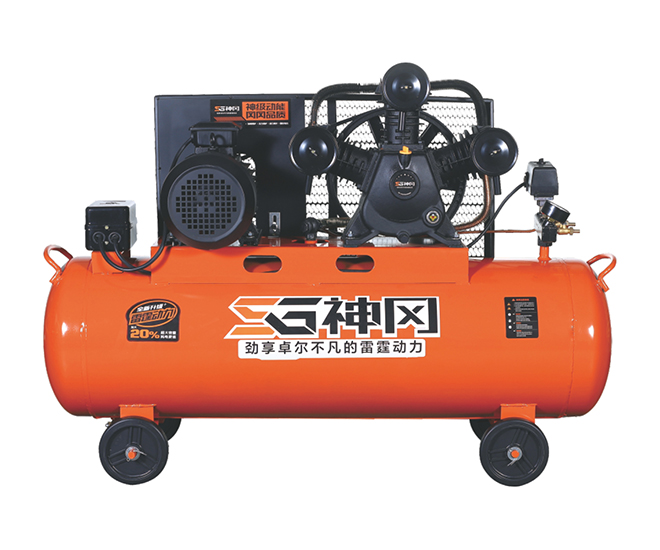

Belt type air compressor
SG-W0.4/8 SG-W0.4/12.5
The machine has low speed, fast air flow,90L large industrial tank,extremely fast air flow of 170",180 pieces of cold-rolled high-speed punching motor, 185V low voltage normal start, enlarged gas storage tank design, Baosteel national standard steel plate, safety guaranteed.
| Model | Power | Cylinder diameter * number of cylinders | Speed | Traffic | Voltage | Volume | Exhaust pressure | Weight | Overall dimensions | ||||
| Model | Kw | Hp | φ mm*s | r/min | L/min | cfm | V | L | Gal | Bar | Psi | Kg | L*W*H cm |
| SG-V0.28/8 | 2.2 | 3 | 65x2 | 860 | 280 | 10 | 220/380 | 90 | 23.8 | 8 | 116 | 87 | 110x42x82 |
| SG-V0.28/12.5 | 2.2 | 3 | 65x2/51x1 | 860 | 280 | 10 | 220/380 | 90 | 23.8 | 12.5 | 181 | 87 | 110x42x82 |
| SG-W0.4/8 | 3 | 4 | 65x3 | 850 | 480 | 17.2 | 220/380 | 105 | 27.7 | 8 | 116 | 112 | 124x45x87 |
| SG-W0.4/12.5 | 3 | 4 | 65x2/51x1 | 850 | 480 | 17.2 | 220/380 | 105 | 27.7 | 12.5 | 181 | 112 | 124x45x87 |
