Preferred for automotive maintenance/spraying

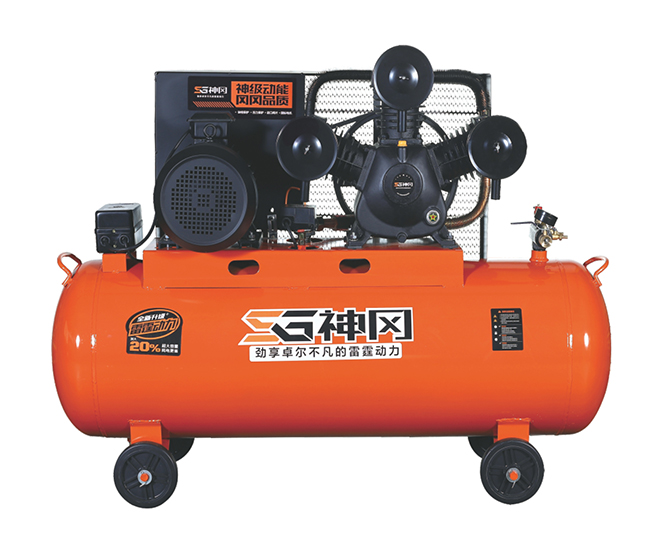

The machine adopts a new patented enlarged and thickened box, which is wear-resistant, not easy to channel oil, high-stroke cylinder head, low noise, fast air flow, adopts national standard motor, strong power, easy to drive the heightened head, Baosteel national standard steel plate,lncrease the design of the gas storage tank to ensure safety.
Model | Power | Cylinder diameter * number of cylinders | Speed | Traffic | Voltage | Volume | Exhaust pressure | Weight | Overall dimensions | ||||
Model | Kw | Hp | φ mm*s | r/min | L/min | cfm | V | L | Gal | Bar | Psi | Kg | L*W*H cm |
SG-V0.67/8 | 4 | 5.5 | 90x2 | 850 | 670 | 23.9 | 380 | 160 | 42.3 | 8 | 116 | 153 | 137x50x98 |
SG-V0.67/12.5 | 4 | 5.5 | 90x1/65x1 | 850 | 670 | 23.9 | 380 | 160 | 42.3 | 12.5 | 181 | 153 | 137x50x98 |
SG-W0.98/8 | 7.5 | 10 | 90x3 | 850 | 980 | 35 | 380 | 225 | 59.5 | 8 | 116 | 153 | 152x54x103 |
SG-W0.98/12.5 | 7.5 | 10 | 90x2/65x1 | 850 | 980 | 35 | 380 | 225 | 59.5 | 12.5 | 181 | 153 | 152x54x103 |
SG-W0.98/16 | 7.5 | 10 | 90x2/65x1 | 850 | 980 | 35 | 380 | 225 | 59.5 | 12.5 | 181 | 154 | 152x54x103 |
