Preferred choice for factory/mining/municipal construction

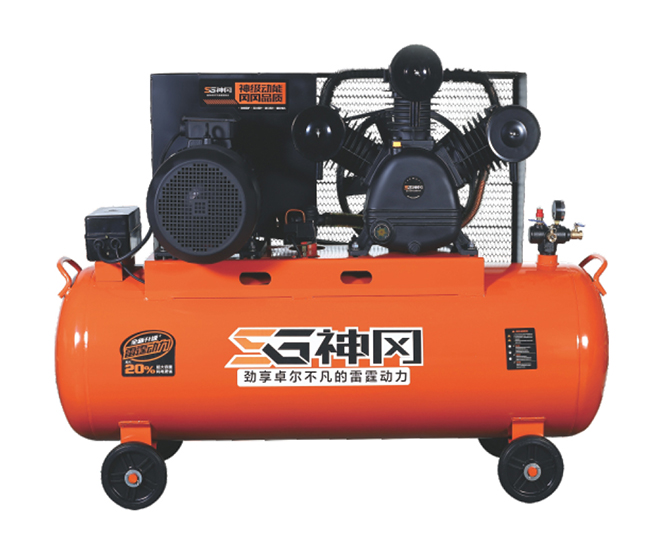

The machine adopts a new patented enlarged and thickened box body, wear-resistant, not easy to oil, high-stroke cylinder head, heavier main engine wheel ratio, running more smoothly, adopts national standard motor, strong power, easy to drive the heightened head, Baosteel National standard steel plate and increased gas storage tank design to ensure safety.
Model | Power | Cylinder diameter * number of cylinders | Speed | Traffic | Voltage | Volume | Exhaust pressure | Weight | Overall dimensions | ||||
Model | Kw | Hp | φ mm*s | r/min | L/min | cfm | V | L | Gal | Bar | Psi | Kg | L*W*H cm |
SG-V1.05/8 | 7.5 | 10 | 105x2/55x1 | 860 | 1050 | 37.5 | 380 | 300 | 79.3 | 12.5 | 181 | 304 | 157x62x122 |
SG-V1.05/12.5 | 7.5 | 10 | 105x2/55x1 | 860 | 1050 | 37.5 | 380 | 300 | 79.3 | 12.5 | 181 | 304 | 157x62x122 |
SG-W1.2/8 | 7.5 | 10 | 90x3 | 820 | 1200 | 42.9 | 380 | 300 | 79.3 | 8 | 116 | 247 | 152x62x116 |
SG-W1.6/8 | 15 | 15 | 100x3 | 820 | 1600 | 57.2 | 380 | 320 | 84.5 | 8 | 116 | 345 | 165x66x125 |
SG-W2.0/8 | 20 | 20 | 120x3 | 720 | 2000 | 72.5 | 380 | 320 | 84.5 | 8 | 116 | 385 | 170x66x135 |
