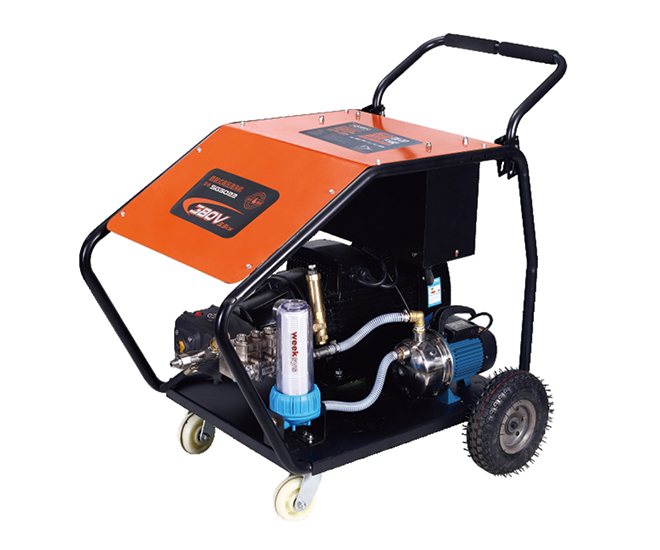

The machine can be equipped with a variety of gun head configurations: direct injection(standard), rotating (optional), sandblasting (optional), suitable for different places; increase the pump head to adapt to high-power, ultra-high pressure continuous operation; precision secondary filtration , For the harsh environment, fundamentally ensure the long life of the equipment; self-priming pump, sufficient to ensure the water source, pressure and flow continuous uninterrupted: nationa standard motor, star-delta soft-start electric control, less impact on the machine and power grid, and plenty of power.
Product model | Power | Voltage | Pressure | Traffic | Speed | High pressure pipe specifications | Nozzle model | Weight | Overall dimensions | |||
Model | Kw | Hp | V | Bar | Psi | L/min | cfm | r/min | φ mm*m*S storey | φ mm | Kg | L*W*H cm |
SG500 | 22 | 30 | 380 | 500 | 7250 | 22 | 0.8 | 1450 | 8x10x4 | 35 | 333 | 120x90x86 |
SG400 | 15 | 20 | 380 | 400 | 5800 | 20 | 0.71 | 1450 | 8x10x4 | 40 | 288 | 120x90x86 |
SG300 | 11 | 15 | 380 | 300 | 4350 | 18 | 0.64 | 1450 | 8x10x4 | 40 | 222 | 120x90x86 |
