Specially designed and produced for laser welding machines; The welding effect achieves the effect of argon and nitrogen gas; The usage cost is only about 10% of bottled gas;
Produced according to national standards, exempt from inspection; Safe and reliable;
It can be used by opening the valve, which is convenient and simple. It can drive multiple laser welding machines to use simultaneously.

Q & A Contact

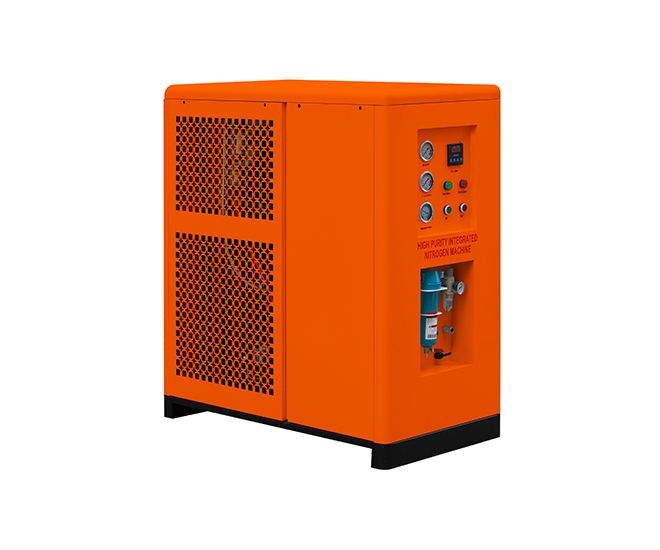

Nitrogen generator HS CODE:84798999.90
Specification	2m³	2m³	3m³	4m³	5-10m³
Model	SG-Z059	SG-Z060	SG-Z061	SG-Z062	Customizable Can carry 5-10 laser handheld welders
Nitrogen Production	2m³/h	2m³/h	3m³/h	4m³/h
Nitrogen purity/%	99.99/99.999	99.99/99.999	99.99/99.999	99.99/99.999
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Power	3.6KW	15W	15W	30W
Automatic Start And Stop	Standard configuration
Configuration	No need of cold dryer or air compressor	Need of cold dryer or air compressor	Need of cold dryer or air compressor	Need of cold dryer or air compressor
Appearance Size	11260121	5243100	6056100	7260100
Weight	228KG	62KG	71KG	86KG
Air Intake Pressure	≥0.65≤0.8Mpa	≥0.65≤0.8Mpa	≥0.65≤0.8Mpa	≥0.65≤0.8Mpa
Nitrogen Production Pressure	≥0.55≤0.7Mpa	≥0.55≤0.7Mpa	≥0.55≤0.7Mpa	≥0.55≤0.7Mpa
Recommendations For Adapting Welding Machines	2laser handheld welding	2laser handheld welding	3laser handheld welding	4laser handheld welding
Special nitrogen generator for cutting machines, please consult
A handheld laser welding machine costs at least US$20 in gas per day. Our machines only consume 30KW of electricity a day. And it drives two laser handleld welders at the same time. Very economical, convenient and safe.
